These (still) aren't the SCs you're looking for …

(mis)adventures in WCAG 2.x interpretation and audits

TetraLogical

These (still) aren't the SCs you're looking for …

(mis)adventures in WCAG 2.x interpretation and audits

Patrick H. Lauke

about me …

déjà vu?

you may have already seen an earlier version of this talk …

even years later, the same question still bubbles up
(on mailing lists, a11ySlack, mastodon, …)

“which success criterion can I fail this under?”

Meme picture: FAIL ALL THE THINGS

far too often, auditors clearly dislike something, and look for a justification to fail it

and I get it … sometimes it's just to show how smart we are

overstep the boundaries of WCAG SCs

claim something has to be fixed/changed "to pass WCAG" when it normatively doesn't

Animation loop from Judge Dredd (1995) - Dredd shouting 'I am the law'

we are not lawyers (or judges)

but our audits and evaluations often have some legal dimension to them.

… of course, this is easier said than done

WCAG is built on the idea that success criteria can be evaluated clearly, unambiguously and consistently…

… but that's not always the case

with WCAG 2.2 we now have
9 more SCs!

… just more potential for confusion and misinterpretation?

only a few cherry-picked examples

but there's more where that came from…

WCAG success criteria are often misunderstood and/or misinterpreted

leads to wrong, or at least inconsistent, error reporting

Animation loop from Star Wars - Obi Wan waving his hand and saying: these aren't the droids you're looking for …

2.4.6 Headings and Labels (AA)

Headings and labels describe topic or purpose.

this doesn't mandate the use of headings and labels … only that if a page uses headings and labels, they must be descriptive.

it also doesn't mandate that headings and labels be correctly marked-up - that's the job of 1.3.1 Info and Relationships and (where it affects "accessible name" of controls) 4.1.2 Name, Role, Value.

lastly, if labels aren't there, it's a 3.3.2 Labels or Instructions problem.

<p class="heading1">More information</p>

3.3.2 Labels or Instructions (A)

Labels or instructions are provided when content requires user input.

again, this doesn't mandate that labels be marked-up as <label> and properly associated with form controls - that's covered by 1.3.1 Info and Relationships and (where it affects "accessible name" of controls) 4.1.2 Name, Role, Value.

<input type="text">
<p>First name</p>
<input type="text">
<p>First name</p>
<input type="text" aria-label="First name">

2.1.1 Keyboard (A)

All functionality of the content is operable through a keyboard interface […]

doesn't say anything about which keys are needed to operate controls/functionality

<a href="#" onclick="…" role="button">fake button</a>

even though it doesn't respond to SPACE like real button would

<a href="#" role="button">Activate using 'b'</a>
.addEventListener('keypress', function(e) {
    if (e.key == 'b') { /* do something */ }
})

even though it can only be triggered using the letter b

1.3.3 Sensory Characteristics (A)

Instructions provided for understanding and operating content do not rely solely on sensory characteristics of components such as shape, color, size, visual location, orientation, or sound.

this only relates specifically to instructions … and not whether or not sensory characteristics are used for content - this is covered by other SCs, like 1.4.1 Use of Color or even 1.1.1 Non-Text Content.

Fixes for Understanding 1.3.3 Sensory Characteristics #767

example: buttons with shapes or colours

Two sets of unlabelled buttons - in the first, one button is square, the other is round; in the second, both buttons are square, but one is red while the other is green

example: buttons with shapes or colours

The same two sets of buttons, but this time there are instructions: 'To proceed, press the round button' and 'To proceed, press the green button'

SCs that are interpreted as their opposites

1.4.1 Use of Color (A)

Color is not used as the only visual means of conveying information, indicating an action, prompting a response, or distinguishing a visual element.

Two lines of black text, both containing a link each; the links aren't underlines; in the first line, the link is blue, while in the second line the link is black just like the text (and not discernible at all visually)

both lines contain a link. but only in the first line is colour used.

the first cases fails 1.4.1 Use of Color, but the second passes

auditors pondering failing the previous example for not using colour …

1.3.1 Info and Relationships (A)

Information, structure, and relationships conveyed through presentation can be programmatically determined or are available in text.

auditors pondering failing the previous example for not conveying things through presentation …

SCs are non-commutative
("if X, then Y" does not mean "if Y, then X")

WCAG success criteria and cascades of fail

cascade of fail

<a href="…"> <img src="…"> </a>

fails multiple criteria, in sequence:

need consistency in how this is reported

interrelated criteria …

3.1.1 Language of Page (A)

The default human language of each Web page can be programmatically determined.

3.1.2 Language of Parts (AA)

The human language of each passage or phrase in the content can be programmatically determined […]

if you can't determine the language of the page, then you also can't determine the language of each passage or phrase.

fail one, and you automatically fail the other …

minimum and enhanced

fail one, and you automatically fail the other …

need consistency in how this is reported (if you care about AAA)

auditor education / consistency problems …

internal training and resources can help

more problematic are issues caused by
WCAG SCs that are vague, incomplete or otherwise lacking

WCAG 2.x is not perfect

written by well-meaning, but fallible humans …

WCAG success criteria can be subjective

subjective interpretation?

what is a list?

Three links, presented on a single line, separated by slashes
<a href="/">home</a>
<a href="…">products</a>
<a href="…">contact</a>

do you fail 1.3.1 Info and Relationships because they didn't wrap this in a <ul>, even if this isn't conveyed through presentation?

if you look hard enough, it's turtles lists all the way down

WCAG has a few strange omissions, ambiguities, exemptions

2.4.4 Link Purpose (In Context) (AA)

The purpose of each link can be determined from the link text alone or from the link text together with its programmatically determined link context […]

what counts as "programmatically determined link context"? do preceding headings count?

"I think what the
founding fathers/mothers
of WCAG meant to say …"
Animation loop from The Big Lebowski: the dude sitting at the bowling hall, shaking his head

understanding documents and techniques try to clarify …

normative versus
non-normative

understanding / techniques can't provide examples of all possible scenarios

beyond the need for subjective interpretation

WCAG success criteria can have odd loopholes

2.4.7 Focus Visible (AA)

Any keyboard operable user interface has a mode of operation where the keyboard focus indicator is visible.

but what does visible mean? it's not normatively defined…

Two identical looking 'Sign in' buttons - but the one on the right has a single light pixel added

a single extra pixel shown on focus is arguably visible

WCAG 2.1 decided not to modify 2.0 SCs, patched loopholes with more SCs

but these new SCs also ended up having some loopholes

1.4.11 Non-text Contrast (AA)

The visual presentation of the following have a contrast ratio of at least 3:1 against adjacent color(s):

  • User Interface Components: Visual information required to identify user interface components and states […]
  • Graphical Objects: […]
Two identical looking 'Sign in' buttons - but the one on the right has a single light pixel added; this one pixel is darker than in the previous example

much better … that pixel has a 3:1 contrast ratio now

… but we'll fix focus WCAG 2.2?

2.4.11 Focus Appearance (Minimum) (Level AA)

2.4.12 Focus Appearance (Enhanced) (Level AAA)

… but we'll fix focus WCAG 2.2!

2.4.11 Focus Appearance (Minimum) (Level AA)

2.4.12 Focus Appearance (Enhanced) (Level AAA)

2.4.13 Focus Appearance (Level AAA)

Only at Level AAA … where success criteria go to die

2.4.11 Focus Not Obscured (Minimum) (AA)

New in WCAG 2.2

When a user interface component receives keyboard focus, the component is not entirely hidden due to author-created content.

Screenshot of a site with a sticky header - a link in the underlying main content has focus, and is half obscured by the header

classic example: sticky header …

this passes 2.4.11 Focus Not Obscured (Minimum) (AA)

but how far can we take the "not entirely hidden" aspect?

Screenshot of a site with a sticky header - a link in the underlying main content has focus, and is completely covered except for the bottom 1px border of the focus indicator just peeking out from underneath the header

arguably … not entirely hidden
(but is the focus indicator part of the component? wcag/issues/3529)

1.4.1 Use of Color (A)

Color is not used as the only visual means of conveying information, indicating an action, prompting a response, or distinguishing a visual element.

Two sign in buttons. The left button is gray. The right button is light green. An arrow points from the left button to the right button, with text 'Tab' above it

if your focus indication just changes colour, 1.4.1 likely applies

If content is conveyed through the use of colors that differ not only in their hue, but that also have a significant difference in lightness, then this counts as an additional visual distinction, as long as the difference in relative luminance between the colors leads to a contrast ratio of 3:1 or greater.

used to be buried in technique F73, now in understanding for 1.4.1 (#1500)

Two sign in buttons. The left button is gray. The right button is light green. The right button is hovered with a mouse pointer in the shape of a hand

beware: if you look hard enough, everything is a use of color.

is it essential for conveying information or just eye candy?

Animation loop from the Matrix: Morpheus in the kung-fu dojo simulation, doing the 'come at me' hand gesture

SCs that are overly specific …

and then end up only applying to very specific cases

1.4.10 Reflow (AA)

Content can be presented without loss of information or functionality, and without requiring scrolling in two dimensions for:

  • Vertical scrolling content at a width equivalent to 320 CSS pixels
  • Horizontal scrolling content at a height equivalent to 256 CSS pixels

[…]

to help low vision users. should ideally have been "use responsive design"

instead, it was watered down to 400% zoom on a 1280×1024 display … and now only normatively applies at those exact values

1.4.12 Text Spacing (AA)

In content implemented using markup languages that support the following text style properties, no loss of content or functionality occurs by setting all of the following […]:

  • Line height (line spacing) to at least 1.5 times the font size
  • Spacing following paragraphs to at least 2 times the font size
  • Letter spacing (tracking) to at least 0.12 times the font size
  • Word spacing to at least 0.16 times the font size

[…]

only those exact values and over

do you test the "at least" part here, and up to which values?

what if user changes just a few (e.g. just letter spacing)

this bookmarklet didn't work to change text styles … can I fail this?

no you can't … the SC doesn't care if a user can or can't change the metrics, or if a particular bookmarklet or method doesn't work.

only that if the metrics are indeed changed, then content doesn't become unreadable or unusable.

Understanding 1.4.12: clarify the intent and author responsibility #1687

3.3.8 Accessible Authentication (Minimum) (AA)

New in WCAG 2.2

A cognitive function test (such as remembering a password or solving a puzzle) is not required for any step in an authentication process […]

Two forms side by side: on the left, a sign-in form with a CAPTCHA; on the right, the almost exact same form, but the submit button now says 'sign up' instead of 'sign in'

what counts as an authentication process

SCs that are confusingly titled

2.5.8 Target Size (Minimum) (AA)

New in WCAG 2.2

The size of the target for pointer inputs is at least 24 by 24 CSS pixels […]

at first glance, the SC defines a minimum target size (it says so in the title)

2.5.8 Target Size (Minimum) (AA)

New in WCAG 2.2

The size of the target for pointer inputs is at least 24 by 24 CSS pixels except where:

  • Spacing: Undersized targets (those less than 24 by 24 CSS pixels) are positioned so that if a 24 CSS pixel diameter circle is centered on the bounding box of each, the circles do not intersect another target or the circle for another undersized target

the first exception turns this into Target Spacing (Minimum)

A tiny square, representing a 1px by 1px target, with a superimposed circle noted to be 24px in diameter

no target too small – as long as it has spacing

3.2.6 Consistent Help (A)

New in WCAG 2.2

If a Web page contains any of the following help mechanisms, and those mechanisms are repeated on multiple Web pages within a set of Web pages, they occur in the same order relative to other page content, unless a change is initiated by the user […]:

the understanding document goes in depth listing and explaining help mechanisms, but the SC doesn't actually require any help mechanisms to be present at all …

Three views of the same webpage (the W3C homepage, overlaid with a semi-transparent white layer to deemphasise it), with a floating 'Support' button in three different positions

relative order here means just means a consistent "focus/reading order"

"If the help item is visually in a different location, but in the same serial order, that is not helpful from a user's point of view, but it would not fail this criterion."

Animated gif: Russel Crow in Gladiator, after winning his first fight, arms wide holding a sword and addressing the crowd: 'are you not entertained?'

even after years of auditing,
I sometimes have weird moments of realisation

seeing SCs, and what they say/apply to, in a new light

Meme picture 'sudden clarity Clarence': young man at a packed party/rave, staring into the distance as if he is having an epiphany

same discussions about applicability and interpretation even happen within the AGWG

WCAG success criteria need to be testable … but this doesn't allow for nuance

WCAG SCs are binary
you either
pass or fail

Color Contrast Analyser, showing that #777777 on #FFFFFF fails with contrast just below 4.5:1, but #767677 on #FFFFFF passes at exactly 4.5:1 - but visually the two greys are indistinguishable

sometimes the values/thresholds are just arbitrary lines in the sand

no weighting given to impact or frequency of a particular fail,
or how bad a failure is off the mark

sometime, you just want to say something's a minor or soft fail, but distinction doesn't exist

fail a single SC and you can't really claim to be conformant

loopholes, omissions and subjective requirements can and will be exploited

auditors aren't the only ones who try to find these gaps …

Classic 'Bobby v3.2 Approved' badge, with the comic-style british bobby/policeman with a wheelchair user symbol on his helmet

… so what do we do then?

Animation loop from the Muppet Show - Statler and Waldorf in their balcony seat
Screenshot of W3C WCAG GitHub repository issues/pull requests, filtered for all open items involving me

join my WCAG Trash Panda Web Ring
github.com/w3c/wcag/issues?q=is%3Aopen%20patrickhlauke
to look for discussions and pending clarifications

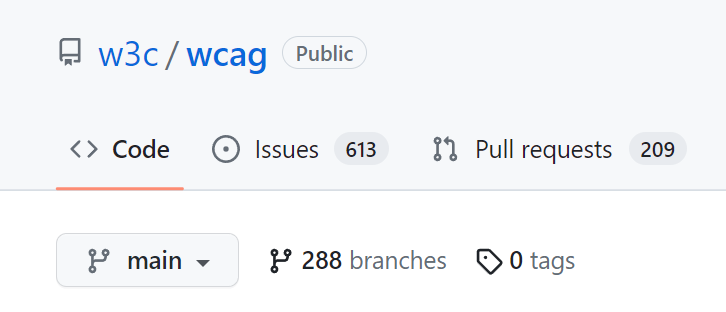

Close-up of the W3C WCAG GitHub repository, showing it has 613 open issues, 209 pull requests, and 288 branches

frustration: most efforts has been going towards new WCAG 2.2 SCs
rather than fixing what's broken in 2.0/2.1

Screenshot of the W3C Accessibility Guidelines (WCAG) 3.0 - W3C Working Draft 24 July 2023

w3.org/TR/wcag-3.0 … but still very early days

and it will be quite some time before legislation references 3.0 once it's actually a ratified recommendation …

but in the meantime

don't creatively reinterpret
what an SC says
to fit your agenda

whether you're a developer or an auditor doing an evaluation

picture of Bruce Boxleitner in Tron (1982), holding his identity disc after a fight, with caption: I FIGHT FOR THE USERS

“but unless it's reported as a WCAG failure
the client won't change it”

then you have more fundamental problem …

as auditor, you do your client a disservice by not making clear what is and isn't a normative failure

what happens when a clued-up client rightly challenges your claim? all your other results lose credibility!

be conservative in your
pass / fail assessments

document your hesitation, clearly state when something's "more of a suggestion" than a hard failure

TetraLogical

@patrick_h_lauke@mastodon.social
github.com/patrickhlauke
tetralogical.com

Creative Commons: Attribution Non-Commercial Share-Alike
